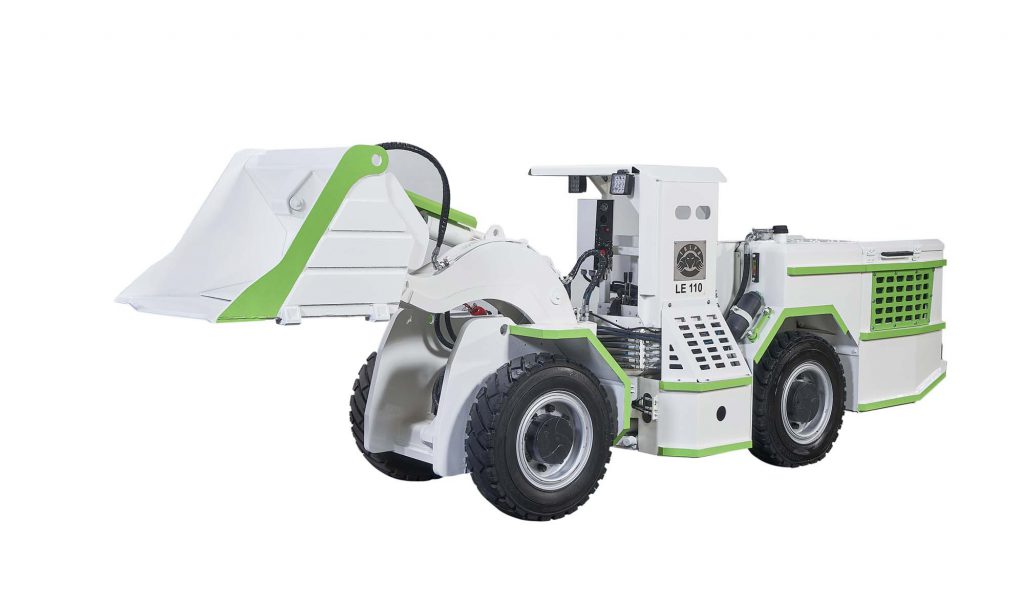

Talpa E 110
Talpa E 110 is a battery-powered underground loader suitable for narrow vein mining with its 1250 mm width and 1-ton bucket capacity. Its rechargeable battery ensures a safer working environment whilst causing zero emission and provides better visibility in both directions with a side-seated operator.
Trammig capacity : 1.000 kg ~ 0.35 m³ / 0,5 yd³
- Suitable for narrow vein mining with a width of 1,25 m and a tramming capacity of 1 ton.
- Low emissions; The rechargeable battery power offers safer working environment.
- Side seated operator for better visibility in both directions.
- Robust articulated chassis.
| Engine | Traction : 1 pc |
| Hydraulics : 2 pcs | |
| Battery | Lithium Battery. |
| Charging | Recharge time is 2.5 hours . |
| Estimated operational time is 4-5 hours | |
| Driveline | Talpa gear box + Oil cooled DANA axles. |
| Oscillation | Rear axle mounted on oscillation frame with 16° (8 degrees in each side) |
| Bucket | Standard bucket volume : 0,35 m³ . Ejector bucket. |
| Tyres | 7.50 R15 |
| Maximum speed | (loaded) 7 km/h |
| Electric System | Accessories 24V 2 Front & 2 rear LED lights. BackUp audio alarm. |
| Hydraulic System | Hydraulic tank capacity : 70 Lt. Gear type pump . Hydraulic Cylinders, double acting type. |
| Tramming capacity | |
| Operating Weight | 5.600 kg |
| Bucket Capacity | 1000 kg / 0.5m³ |
| Total Loaded Weight | 6.600 kg |
| Dimension | |
| Length | 4903 mm |
| Height | 1670 mm |
| Width | 1250 mm |
Manufacturer reserves the right to change the specifications above.
Please contact us for further information.
