Talpa ADT 20
Talpa ADT 20 is a diesel-powered heavy-duty dump truck primarily designed for underground mines, as well as other low, narrow, and restricted conditions. The powerful four-wheel-drive articulated chassis ensures fast and safe maneuverability in tight spaces.
Its robust design, excellent power-to-weight ratio, and ease of servicing make it a reliable choice. With an exceptional power-to-weight ratio, this vehicle delivers high speeds even on steep gradients. Talpa machines guarantee high speeds in challenging terrains while keeping operational costs at a minimum.
Payload capacity : 20.000 kg ~ Dump Box Capacity (struck/heaped) :8 m³ – 10,5 yd³
| Capacity | |
| Empty weight | 17.000 kg |
| Damper capacity / volume | 20.000 kg – 8 m3 / 9 m3 |
| Loaded weight | 37.000 kg |
| Engine options | Option 1 | Option 2 |
|---|---|---|
| Diesel engine | Cummins QSL9.0 | Volvo TAD852VE |
| Output | 209 kW @ 2000 rpm | 210 kW @ 2200 rpm |
| Torque | 1451 Nm @ 1400 rpm | 1237 Nm @ 1350 rpm |
| Number of cylinders | In-line 6 | In-line 6 |
| Displacement | 8.9 L. | 7.7 L. |
| Cooling system | Water cooled | Water cooled |
| Emission | Euro Stage III A, EPA Tier 3 | Euro Stage III A, EPA Tier 3 |
| Exhaust system | Catalytic converter |
| Radiator | |
| Offloading | |
| Max. damper height | 4979 mm |
| Max. damper angle | 630 |
| Dual effect damper cylinders | 2 pieces |
| Driving speeds (loaded) | |
| 1. gear | 3.6 km/h |
| 2. gear | 7.1 km/h |
| 3. gear | 12.1 km/h |
| 4. gear (*blocked by OEM) | *20.6 km/h |
| Driveline | |
| Transmission | DANA |
| Torque converter | DANA |
| Gears | 4 forward / 4 reverse |
| Axles | Kessler D91 series |
| Degree of oscilation | +/- 8° |
| Service brake | Spring applied hydraulically release brake (SAHR) |
| Hyraulic system | |
| Main Pump (Steering-Dump Box) | Heavy Duty Gear |
| Manual Hydraulic Tank Fill Pump | |
| Filtration Type | Suction, Return |
| Pump (Brake) | Gear Type |
| Pump (Fan) | Gear Type |

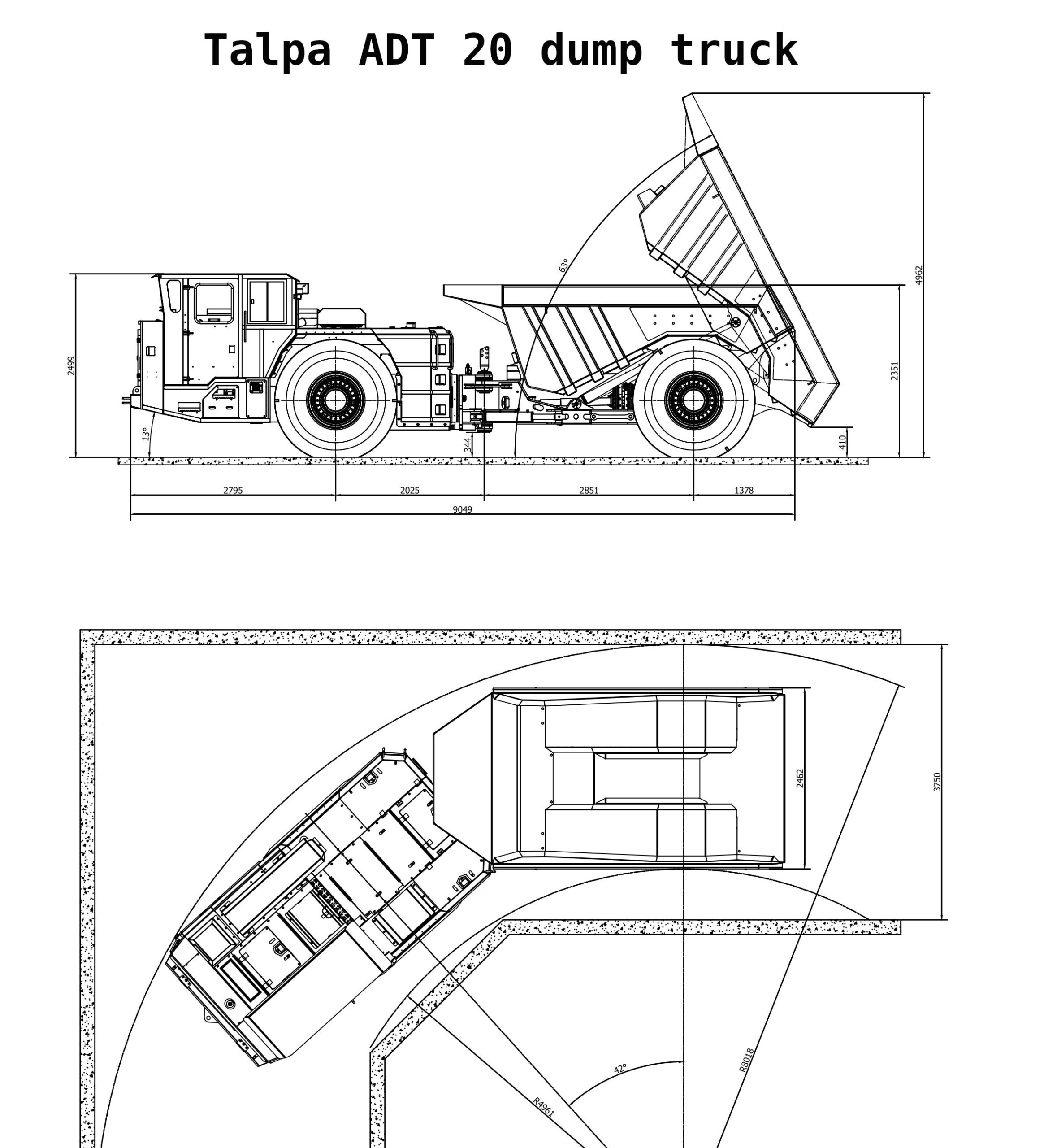

| Machine dimensions | |
| Length | 9200 mm. |
| Width | 2335 mm. |
| Height ( canopy ) | 2450 mm. |
| Tyres | 18.00 R25 (Tires are application approved. Brand subject to availability.) |
| Electric system | |
| Battery | 2 x 180A |
| System voltage | 24 V |
| Lights (LED) | 3 Front, 4 Rear, 1 Side |
| Canopy | |
| Steering controls | Steering wheel. |
| ROPS/ FOPS approved safe canopy | |
| Closed canopy | |
| Rear view camera display in operator cabin | |
| Other specifications | |
| Reverse movement audible alarm | |
| Air filtration | Dry type – two stage filtration |
| Fire extinguisher | |
| Automatic fire suppression system | Optional |
| Automatic central lubrication | Optional |
| Manual lubrication system | |
| Media pack | Optional |
| Winter kit | Optional |
| Certificates | |
| CE | |
| EN ISO 3471:2008 ROPS | |
| EN ISO 3449:2008 FOPS | |
| EAC |
- Perfect manoeuvring
capabilities and operational performance - Low cost/tonne mine carrying design
- Robust steel structure
- Continuous traction with oscillating front axle
- Catalytic converter
- Oil cooled, fail-safe (SAHR) brakes
- Kessler axles with planetary hub reduction
- Optional central lubrication
| Tramming Capacity | |
| Operating weight | 17000 kg |
| Total loaded weight | 37000 kg |
| Damper capacity | 8 m3 / 9 m3 |
| Dimensions | |
| Length | 9200 mm |
| Height (canopy) | 2450 mm |
| Width | 2335 mm |
Manufacturer reserves the right to change the specifications above. Please contact us for further information.
