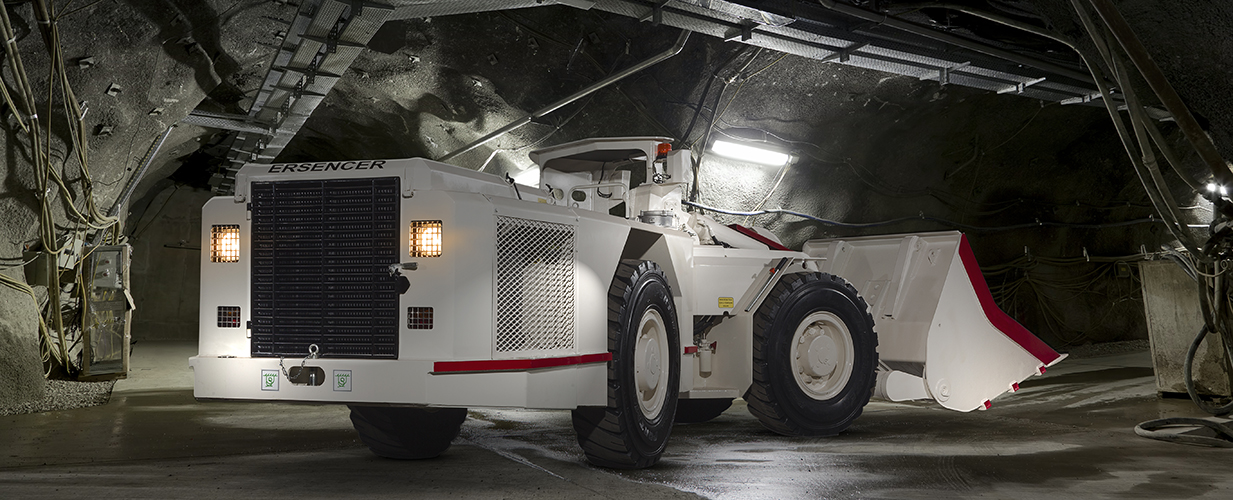

Talpa LH 217

Designed for underground galleries, the LH 217 loaders provide maximum value with their customer oriented designs.

  • Excellent maneuvering and operation performance
  • High/Low damping level with option
  • Short cycle time
  • Efficient loader characteristic
  • Various bucket options for different operations
  • DANA powershift transmission
  • Robust steel structure
  • Constant ground contact with oscillating rear axle
  • Catalytic converter and spark arrester
  • Fire suppression system
  • Oil cooled, fail-safe (SAHR) brakes
  • Kessler axles with planetary hub reduction
  • Optional central lubrication
Engine
Engine Tier 3/EU  III A
Power rating 84,5 kW/2200 rpm – Turbo
Displacement 4,5 Lt
Number of cylinder 4
Maximum torque 392 Nm @1400 rpm
Cooling system Su / Water cooled
Exhaust system Katalitik konverter / Catalytic converter
Air cleaner Evet / Yes
Exhaust silencer Evet / yes
Radiator Evet / Yes
Drive Line
Transmission brand DANA
Gears Forward 3
Gears Reverse 3
Torque brand DANA
Axles brand Kessler
Degree of axle oscillation +/-10°
Brake type SAHR
Tyres
Dimension 12.00 X 20
Canopy
Canopy (ROPS/FOPS certificate) Evet / Yes
Steering control Joystick
Electrical system
Battery 2 X 105 A
Alternator 80 A
System voltage 12V
Lights (LED) 2 Ön, 2 Arka / 2 Front, 2 Rear
Hydraulic system
Main pump Tandem Dişli Pompalı / Tandem gear pump
Hydraulic tank capacity 140 Lt
Maunual hyd.tank fill pump Evet / Yes
Filtration type Emme / Suction
 Control System
Type Manuel kontrollü / Manual control
Fuel
Fuel tank capacity 190 lt
Fuel filter Evet / Yes
Other
Back-up alarm Evet / Yes
Central manual lubrication system Opsiyonel / Optional
Manual lubrication system Evet / Yes
Fire extinguisher Evet / Yes
Tramming capacity
Operating Weight 8950 kg
Bucket Capacity 3500 kg / 1.7m³
Total Loaded Weight 12450 kg
Dimension
Length 7497 mm
Height 2000 mm
Width 1650 mm
Certificates
CE Certificate Evet / Yes
EN ISO 3471:2008 ROPS Evet / Yes
EN ISO 3449:2008 FOPS Evet / Yes

* Manufacturer reserves the right to change the specifications above.

Please call for further information.
